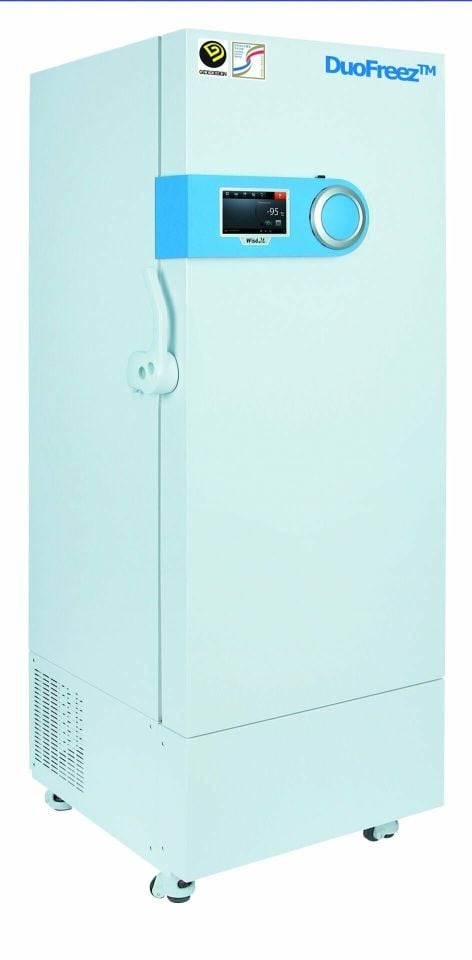

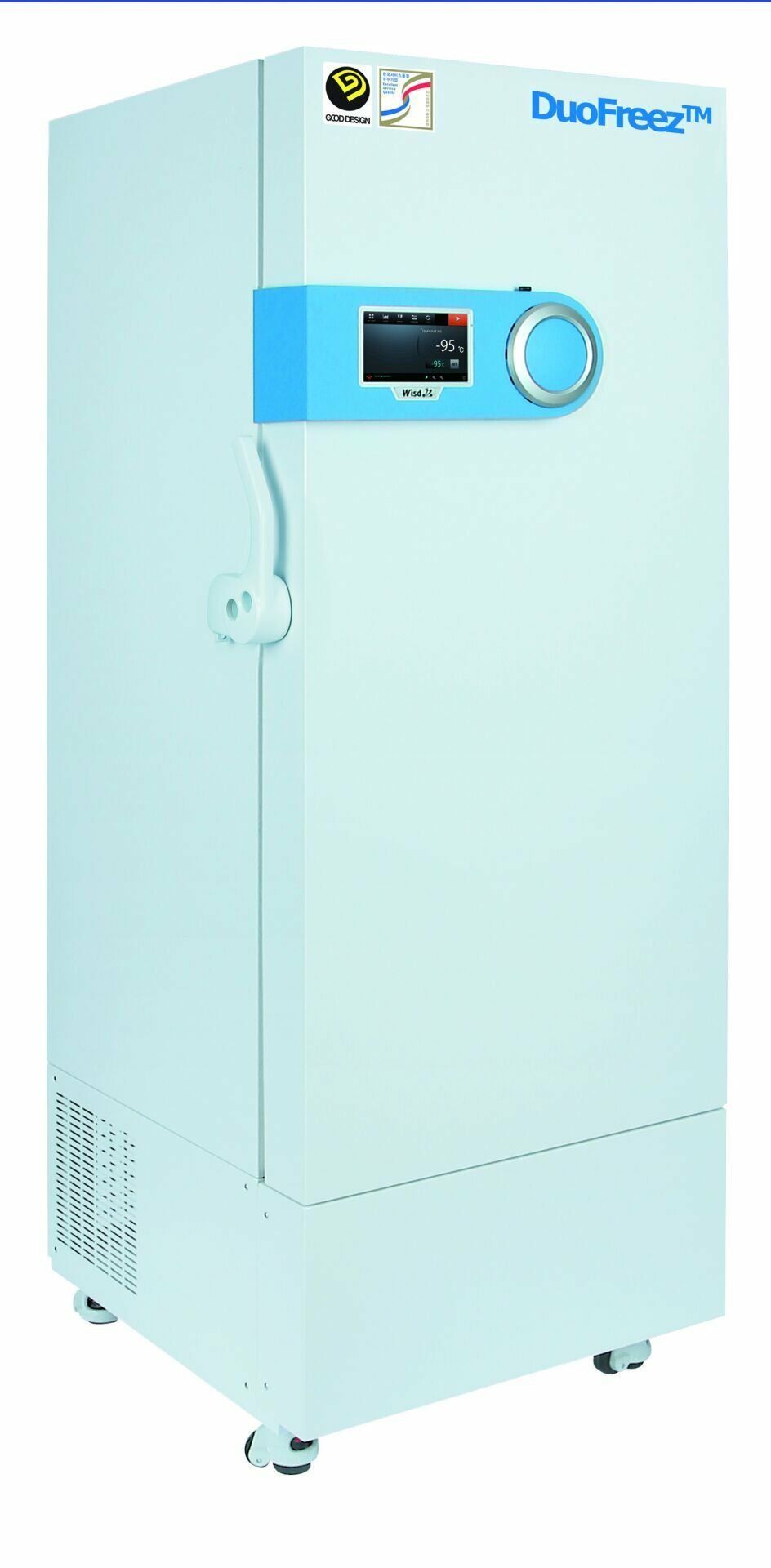

Daihan Fre700-95 Derin Dondurucu (Yedek Kompresörlü)
%10
17.700,00 $ + KDV
15.930,00 $ + KDV

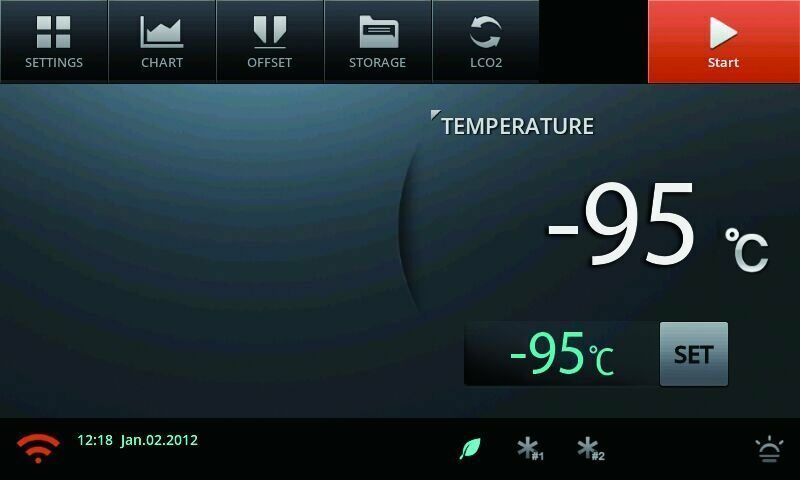

①Adjust and Check the Setting Temp.
②Display the Current Temp.
③Start and Stop of Operation
④Prepare for the State of Emergency by
Injecting LCO2
⑤Enter and Store the Sample Storage Information
⑥Set the Value of the Calibration Temp.
⑦Monitor the Operating Status by Chart
⑧Set up and Adjust Various Functions of the Instrument
⑨Perform Alarm Function if an Error Occurs
⑩Show the Status of the Internet Connection
⑪ Display the Current Date and Time
⑫Show the State of the Operation through LED Lamp
⑬ Display Operating Part of the Device
⑭ USB port : Available Mounted WiFi Module or Data Backup and Program Update of the Controller
SystemⅠ. UniFreezTM Simplified Hi-Efficiency Freezing System
Most of the Ultra-Low Temperature Freezers has two compressors cooperating with each other to drop the internal temperature down to -86℃ as shown in the following figure and its overall freezing mechanism is very complicated.
However, our new UniFreezTM uses only single compressor. Even though, single set of a compressor, a capillary tube, a condenser and an evaporator is incorporated, it ensures the temperature down to -86℃ by an advanced control technology of the compressor and the process of specially mixed refrigerants. UniFreezTM overcomes technical complexity of the typical cascaded double compressor system. Simplification of the freezing mechanism and electricity minimizes the noise, power consumption and failure of operation.
High-Efficiency ! User Safety ! Energy Saving ! Long Life time !
Green Technology for ULT Freezer CFC Free Refrigerants
• The commonly used HFC refrigerants like R-134a, R-1270, R-508A R452A, and R-14, which are potent Greenhouse Gases, will be banned
by European law soon. UniFreezTM system uses specially mixed refrigerants, which are mostly CFC Free Refrigerants. Less Power, Less Money and More Green
• UniFreezTM system, extremely simplified freezing mechanism and electricity realize the lowest power consumption, leading to
less cost for electricity. In the end, it also derives maximum CO2 reduction, for us to have more trees and wider green area.
Typical -86℃ Freezer
Power Consumption : 6,570kWh / year
CO2 Output : 3,212.07 kgCO2 / year
39% Savings
CO2 Output : 1,249.14 kgCO2/ year
Trees to Grow : 90 trees
UniFreezTM U500 Freezer
Power Consumption : 4,015kWh / year
CO2 Output : 1,962.93 kgCO2 / year
