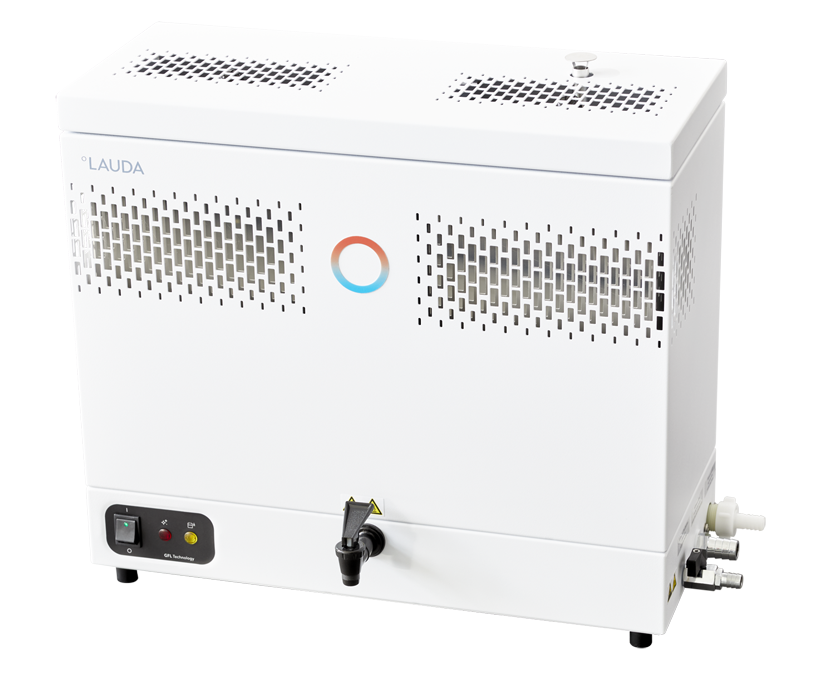

Lauda Puridest Pd-8R Distile Su Cihazı
Kategori
Marka
NOT:
Saatte 8 litre Distile Su üretim Kapasiteli, 16 litre Dahili tank hacmi.
Garanti Süresi
24 Ay
*12.985,86 TL den başlayan taksitlerle!
%10
3.680,00 € + KDV
3.312,00 € + KDV
Features:
Water Still for single distillation (fully automatic) with storage tank, suitable for both bench and wall mounting
The distillate storage tank accepts twice the hourly capacity of the still
Distillate withdrawal through drain cock with continuous and touch position.
Condenser (cooling coil) inside the storage tank, easily exchangeable.
Solenoid valve to control the water supply
Economical energy consumption by distillation of the heated cooling water.
Water saving through automatic water cut-off. Unnecessary water consumption will be avoided.
Evaporator easily accessible for cleaning purposes.
CO2 degassing through outlet in the condenser.
Electronic contamination monitoring of the still with distillation stop and visual cleaning instruction
Automatic refill of the storage tank after distillate removal, controlled by electronic level detection
Thermostatic low water cut-off
Heating element, evaporator, storage tank and condenser made of stainless steel.
Housing made of galvanised sheet steel, powder coated
Double-walled housing
Technical Features:
Conductivity stage 1 /25 °C 2.3 μS/cm
Production output 8 L/h
Tank volume 16 L
Heater power max. 6 kW
Power consumption max. 6 kW
Cooling water flow rate 1.2 L/min
Pressure difference cooling water min. 3 bar
Maximal pressure cooling water 7 bar
Wasserkühlung Zulauf für Schlauch 1/2 "
Wasserkühlung Ablauf für Schlauch 3/4 "
Overall dimensions (WxDxH) 780 x 410 x 540 mm
Weight 34 kg
Ambient temperature range 10 ... 40 °C
Power supply 400 V; 3/N/PE; 50/60 Hz
Power plug Power cord with plug (IEC 60309, 5-pol, CEE, red, 16 A)
